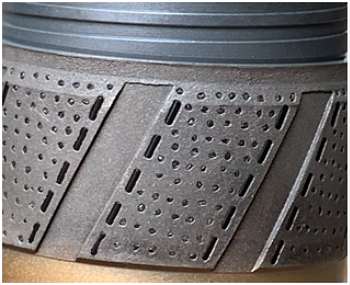

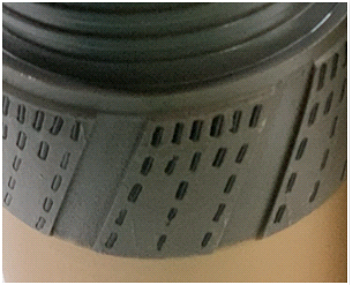

Reamer Shell

A good design of reaming shell can increase the stability and reduce vibration during the drilling, through our engineers more than 20 years efforts, our reaming shells can always keep good contact with the circumference of the hole, we only choose the terrific material to ensure the quality and longer service life in the hole.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Details

A good design of reaming shell can increase the stability and reduce vibration during the drilling, through our engineers more than 20 years efforts, our reaming shells can always keep good contact with the circumference of the hole, we only choose the terrific material to ensure the quality and longer service life in the hole.

  • Reinforced TSP type
    Suitable for most formations
  • Heavy Duty type with density diamonds
    Suitable for all of the rock formations
  •
  •
  •



Wireline Coring System- Impregnated Diamond Bits Dimensions

Type

B-WL(BQ)

N-WL(NQ)

H-WL(HQ)

P-WL(PQ)

O.D. of Bit

Φ59.5mm

Φ74.6mm

Φ95.6mm

Φ122mm

I.D. of Bit

Φ36.5mm

Φ47.6mm

Φ63.5mm

Φ85mm

O.D. of Reaming Shell

Φ60mm

Φ75.8mm

Φ96mm

Φ122.6mm

Note: Customized gauges of the reaming shell are acceptable, contact with our sales representative for getting more supports.



Product Advantages

* Diamond Impregnated Pad

Enables the use of large synthetic diamonds greatly enhancing wear life and eliminating the need for specialty shells in diamond exploration.



* Diamond Ground

Outer diameter grinding pre-exposes the diamond and reduces variation in size improving stability and helping to produce the longest lasting reaming shell available.



* Heavy Duty

Available with an optional heavy duty blank to prevent undercutting in extremely broken conditions (standard on oversize versions).



* Dual Pad

Available in dual pad 10” configurations for straighter holes when deviation is a concern.



Note: Q is the trademark from BLY, here we quoted for helping customers to do a selection only.
