Hoisting Plug

Wireline coring system hoisting plugs allow you to easily raise and lower of drill rods and casing. Choose our universal hoisting plug, made with precision and constructed of high quality components. When you raise or lower your drill string, you want to be able to count on reliability and durability.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Details

Wireline coring system hoisting plugs allow you to easily raise and lower of drill rods and casing. Choose our universal hoisting plug, made with precision and constructed of high quality components. When you raise or lower your drill string, you want to be able to count on reliability and durability.

                                       Net Weight for Universal Hoisting Plug: 6.05KG

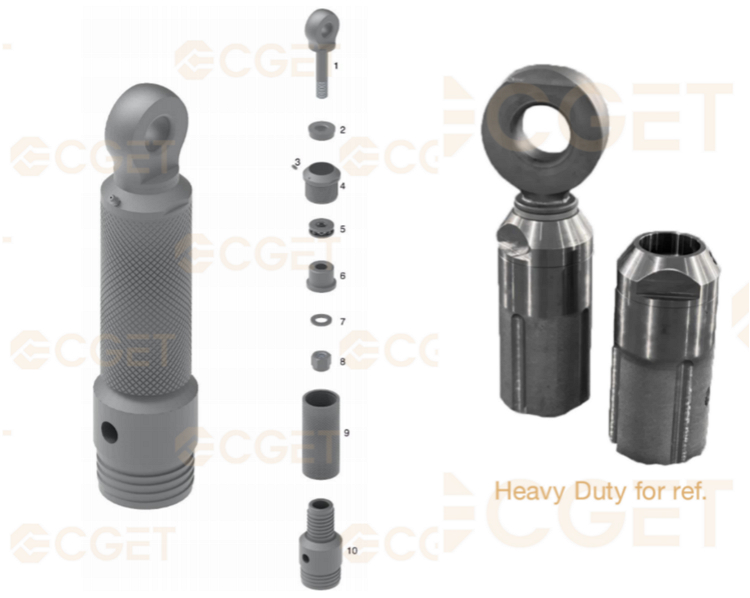

Universal Hoisting Plug

No

P/N

Product Name

Oty

1

CHP-01

Eye Bolt

1

2

CHP-02

Wear Sleeve

1

3

CHP-03

Grease Fitting M6

1

4

CHP-04

Bearing Housing

1

5

CHP-05

Bearing 51305

1

6

CHP-06

Shaft Sleeve

1

7

CHP-07

Washer

1

8

CHP-08

Self-locking Nut M24

1

9

CHP-09

Hoist Plug Lower Housing

1

10

CHP-10

Adapter Sub

1

11

CHP-11

Universal Hoist Plug Assembly

1

1.Regarding P/N: CHP-10 Adapter Sub, it can be customized. The thread type for hoisting plug is NW rod box.

2.Heavy duty hoisting plug ( Net Weight:16.9 KG)is provided as well, contact our sales representative for the details.



How To Order

Contact our sales representative for a recommendation.
